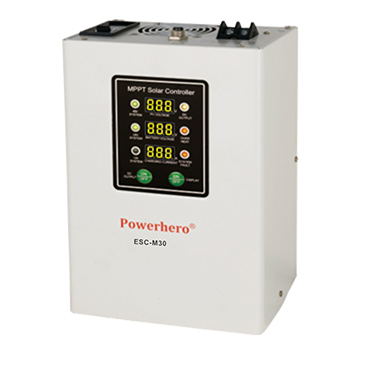

20A MPPT solar charger controller

1. Automatic identification system voltage, 12V/24V/48V auto recognition;

2. Built-in maximum power point tracking algorithm, charging efficiency 15-20% higher than PWM types;

3. With LED display, which can show the charging current and voltage;

4. Reliable over charge protection, once it is under over-current protection;

5. Reverse polarity protection of solar panel and battery;

6. Three-stage charging optimizes battery performance

SCC series MPPT solar charger controller
12V/24V/48V auto recongnization	Model	SCC-M20/SCC-M40/SCC-M60/SCC-M80
	Rated battery voltage	12V	24V	48V
	Max. working efficiency	>98%
	Max. rated charging current	10-80A
	Rated battery voltage	12/24V/48V auto recongnization
	PV working input range	15V-150V	30-150V	60-150V
	Equalization charge voltage	14.2V+-0.3V	28.4V +-0.5V	56.8V +-1V
	Float charge voltage	13.6V+-0.3V	27.2V +-0.5V	54.4V +-1V
	Overcharge	14.5V+-0.3V	29V+-0.5V	58V+-1V
	Over discharge	10.5V+-0.3V	21V +-0.5V	42V +-1V
	Reasume starting voltage	13.2V+-0.3V	26.4V +-0.5V	52.8V +-1V
	Protection	overload, short circuit, reversed polarity
	PV reversed polarity protection	Yes
	controller type	MPPT
	Dimension	310x222x132mm
	Packing dimension	460x325x410
	Weight N.W./G.W (kg)	17.0/19.8kg
