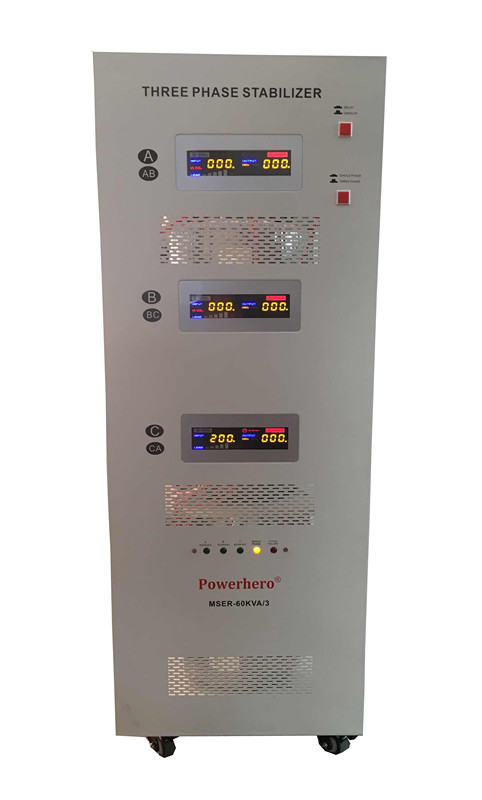

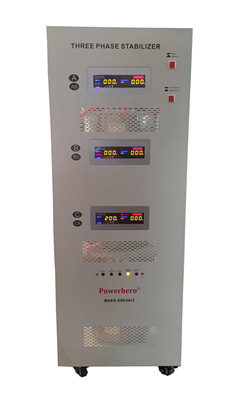

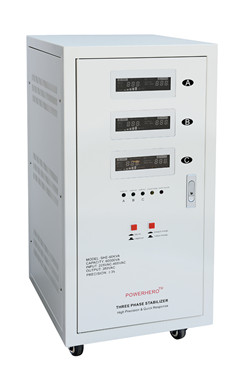

30000VA three phase servo motor stabilizer
30000VA three phase servo motor stabilizer-1

30000VA three phase servo motor stabilizer

 Product Features:

--Taylor-made C.R.G.O Toroidal Transformers 无曲线环形变压器,高可靠性
--With Servo Motor AVR output high precicion ±3% 输出精度高达±3%
--Separately regulate each phase every single phase 220V, three phase 380V. 智能分调系统,单相输出220V,三相输出380V
--Single phase mode &  three phase mode optional, even any phase in failure 单相/三相工作模式可选
--High performance and high speed MCU control 高速MCU控制,更高效
--With very wide input working range 极宽的输入范围
--Concise constructions; LED graphic display LED彩屏显示,精简结构,体积更小巧

  Model /型号 Model /型号 MSER-9KVA MSER-15KVA MSER-25KVA MSER-30KVA
Input Range /输入范围 225V~450V
Model /型号 MTER-9KVA MTER-15KVA MTER-25KVA MTER-30KVA
Input Range /输入范围 173V~450V
  Rated Capacity 额定功率 9000VA 15000VA 25000VA 30000VA
  Phase /相数 Three phase  /三相
  Transformer /变压器 C.R.G.O. toroidal transformer   磨面变压器
  Indicator /显示 LED graphic /LED图文显示
  Display Status /显示状态  working and loading /工作&负载
  Output /输出 Frequency /频率 50/60 Hz
Voltage /电压 380V/400V Vac optional /  380V/400V 可选
Precision / 精度 ± 3%-1%
  Protection / 保护功能 overload / high temperature / high voltage / low voltage(optional) / short circuit
过载保护/过温保护/过压保护/短路保护/欠压保护(可选)
  Efficiency /效率 98%
  Cooling System /冷却系统 YES /
  Environmental /环境 Operating Temperature /运行温度 0 - 40 ℃
Relative Humidity /相关湿度 10%~102% RH, non-condensing /不凝露
Storage Temperature /储存温度 ﹣15 - 45 ℃
  Appearance /外观 Size (Max. mm) MSER 机箱尺寸 545*230*347 690*350*495
Size (Max. mm) MTER 机箱尺寸
N.W. (kg)  MSER 净重 35.2 39.1 72.1 79.5
N.W. (kg)  MTER 净重 38.5 42.8 77.2 86.5
  Packing  /包装 Qty/Ctn / 1
Carton Size (mm) MSER 包装尺寸 635*318*435 780*440*580
Carton Size (mm)  MTER 包装尺寸
Carton G.W. (kg)  MSER 毛重 43.1 47.0 88.6 96.0
Carton G.W. (kg)  MTER 毛重 46.4 50.7 93.7 103.0
