500VA Pure Sine Wave Inverter UPS

1) A True sinewave with very low harmonic distortion, best for all kinds of appliances

2)True C.R.G.O toroidal transformer, lower static loss, more energy saving

3) Intergrated frequency automatic tracking technology, generator compatible

4) With wide AVR range 140-275Vac gives you stable voltage at mains mode

5) Intelligent 3 stage charger best protects your battery

6) 32-bit high speed MCU controll with accurate detection

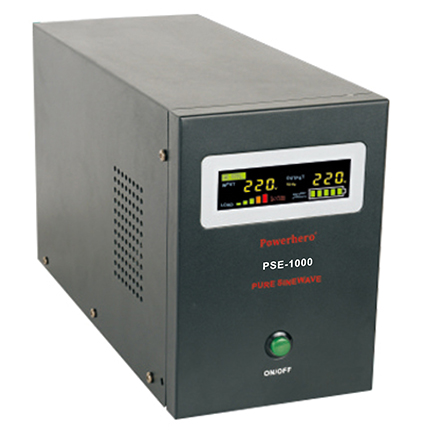

P-series Pure Sine Wave Power Inverter
Features：
Model		PSE-500	PSE-800	PSE-1000	PSE-1500	PSE-2000
Rated capacity		500VA	800VA	1000VA	1500VA	2000VA
Rated power		300W	500W	700W	1050W	1400W
Transformer		C.R.G.O toroidal transformer
Interface		LED graphic
Display status		working& loading& battery
Working mode		PV(photovoltaic priority)/AC (AC priority) optional
Input	voltage	140-275Vac
	Frequency	45-65Hz
Ouput	voltage	220V+-3% for inverter;195-240V for AVR
	Frequency	50/60Hz optional
	Waveform	Pure Sine Wave
	Wave distortion	<=3%
Protection		Overload，high temperature, output high voltage/output low voltage,battery low voltage，short circuit，overcharge，over-discharge，reversed polarity， optional
Transfer time		<=4ms
Battery voltage		12Vdc	12Vdc	12Vdc	24Vdc	24Vdc
Charge voltage		13.6+-0.3V	13.6+-0.3V	13.6+-0.3V	27.2+-0.6V	27.2+-0.6V
Low battery voltage limit		10.9+-0.3V	10.9+-0.3V	10.9+-0.3V	21.8+-0.6V	21.8+-0.6V
Low voltage protection point		10.2+-0.3V	10.2+-0.3V	10.2+-0.3V	20.5+-0.6V	20.5+-0.6V
Charge current		Max. 5A/10A/15A/20A optional
Cooling system		Yes
Enviromental	operating temperature	0-40°
	Relative humidity	10%-90%RH；non-condensing
	storage temperature	,-15°-45°
Packing	machine size	146x340x210
	Qty/Ctn	2
	Carton size	425x420x290
	Carton G.W.	13.60	14.80	17.50	19.60	27.00
