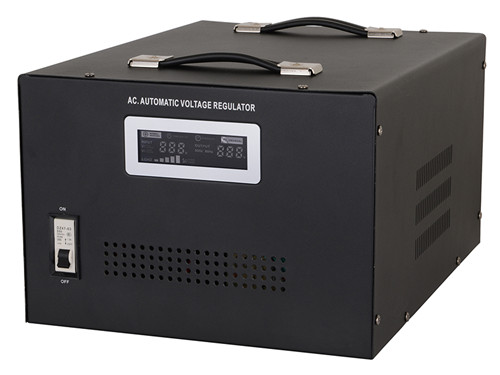

8KVA servo motor AVR voltage stabilizer
8KVA servo motor AVR voltage stabilizer-1

8KVA servo motor AVR voltage stabilizer

 Product Features:
--Taylor-made C.R.G.O Toroidal Transformers
--With Servo Motor AVR output high precivion ±3%
--High performance and high speed MCU control
--With very wide input working range as 140v-300v
--Concise constructions; LED graphic display

  Model/ 型号 Model /型号 MSER-8000 MSER-10000
Input Voltage /输入范围 130V~260V
Model/ 型号 MTER-8000 MTER-10000
Input Voltage /输入范围 100V~260V
  Rated Capacity /额定功率 8000VA 10000VA
  Phase /相数 Single phase /单相
  Transformer /变压器 C.R.G.O. toroidal transformer  /环形变压器
  Indicator /显示器 LED graphic  /LED彩屏显示
  Display Status /显示状态  working and loading  /工作&负载
  Output/ 输出 Frequency/ 频率 50/60 Hz
Voltage /电压 220/230/240 Vac optional /220/230/240V输出可选
Precision/ 精度 ±3%
  Protection /保护功能 overload / high temperature / high voltage/ short circuit  / low voltage optional
过载保护
/高温保护/高压保护/短路保护/欠压保护(可选)
  Efficiency  /效率 98%
  Cooling System /冷却系统 Smart cooling for 3000Va and above /3000VA以上智能冷却
  Environmental /环境 Operating Temperature /运行温度 0 - 40 ℃
Relative Humidity/ 相关湿度 10%~102% RH, non-condensing 不凝露
Storage Temperature /储存温度 ﹣15 - 45 ℃
  Appearance /外观 Size (Max. mm) MSER /产品尺寸 388x302x210
Size (Max. mm) MTER/产品尺寸
N.W. (kg)  MSER /净重 21.20 23.50
N.W. (kg)  MTER /净重 23.30 26.50
  Packing  /包装 Qty/Ctn /
Carton Size (mm) MSER 包装尺寸 500x435x320
Carton Size (mm) MTER包装尺寸
Carton G.W. (kg)  MSER 包装毛重 22.90 25.30
Carton G.W. (kg)  MTER包装毛重 25.10 28.30
