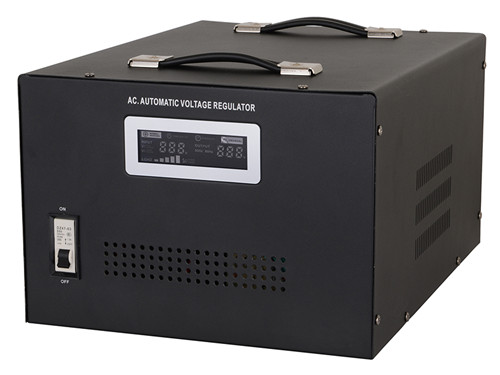

15KVA single phase AVR stabilizer
15KVA single phase AVR stabilizer-1

15KVA single phase AVR stabilizer

 Product Features:
--Taylor-made C.R.G.O Toroidal Transformers
--With Servo Motor AVR output high precivion ±3%
--High performance and high speed MCU control
--With very wide input working range as 140v-300v
--Concise constructions; LED graphic display

  Model/ 型号 Model /型号 MSER-15000 MSER-20000 MSER-30000
Input Voltage /输入范围 140V~300V
Model/ 型号 MTER-15000 MTER-20000 MTER-30000
Input Voltage /输入范围 105V~300V
  Rated Capacity /额定功率 15000VA 20000VA 30000VA
  Phase /相数 Single phase /单相
  Transformer /变压器 C.R.G.O. toroidal transformer  /环形变压器
  Indicator /显示器 LED graphic  /LED彩屏显示
  Display Status /显示状态  working and loading  /工作&负载
  Output/ 输出 Frequency/ 频率 50/60 Hz
Voltage /电压 220/230/240 Vac optional /220/230/240V输出可选
Precision/ 精度 ±3%
  Protection /保护功能 overload / high temperature / high voltage/ short circuit  / low voltage optional
过载保护
/高温保护/高压保护/短路保护/欠压保护(可选)
  Efficiency  /效率 98%
  Cooling System /冷却系统 Smart cooling for 3000Va and above /3000VA以上智能冷却
  Environmental /环境 Operating Temperature /运行温度 0 - 40 ℃
Relative Humidity/ 相关湿度 10%~102% RH, non-condensing 不凝露
Storage Temperature /储存温度 ﹣15 - 45 ℃
  Appearance /外观 Size (Max. mm) MSER /产品尺寸 552x350x675
Size (Max. mm) MTER/产品尺寸 650*320*540 830*320*640
N.W. (kg)  MSER /净重 56.00 62.30 69.00
N.W. (kg)  MTER /净重 44.60 64.70 83.30
  Packing  /包装 Qty/Ctn / 2 1
Carton Size (mm) MSER 包装尺寸 660x455x785
Carton Size (mm) MTER包装尺寸 750*420*745 930*420*845
Carton G.W. (kg)  MSER 包装毛重 68.00 64.30 72.00
Carton G.W. (kg)  MTER包装毛重 52.70 79.70 97.30
