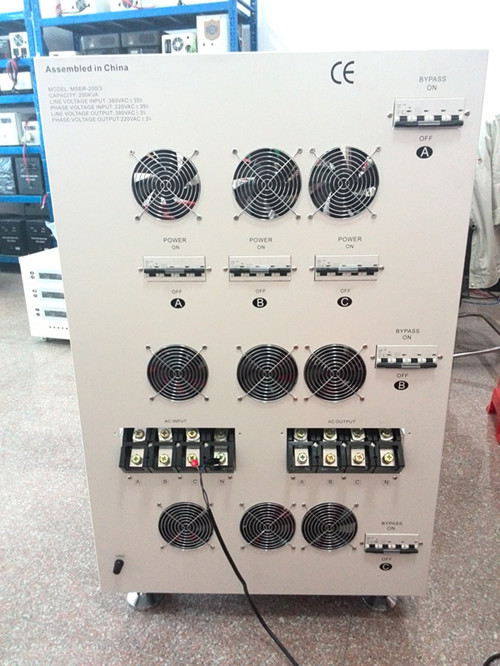

200KVA 380V servo motor three phase AVR
200KVA 380V servo motor three phase AVR-1 200KVA 380V servo motor three phase AVR-2

200KVA 380V servo motor three phase AVR

 Product Features:
--Taylor-made C.R.G.O Toroidal Transformers
--With Servo Motor AVR output high precicion ±3%
--Separately regulate each phase every single phase 220V, three phase 380V.
--Single phase mode &  three phase mode optional, even any phase in failure
--High performance and high speed MCU control
--With very wide input working range
--Concise constructions; LED graphic display
  Model /型号 Model /型号 MSER-150KVA MSER-200KVA
Input Range /输入范围 242V~520V
  Rated Capacity 额定功率 150KVA 200KVA
  Phase /相数 Three phase  /三相
  Transformer /变压器 C.R.G.O. toroidal transformer   磨面变压器
  Indicator /显示 LED graphic /LED图文显示
  Display Status /显示状态  working and loading /工作&负载
  Output /输出 Frequency /频率 50/60 Hz
Voltage /电压 380V/400V Vac optional /  380V/400V 可选
Precision / 精度 ± 3%-1%
  Protection / 保护功能 overload / high temperature / high voltage / low voltage(optional) / short circuit
  Efficiency /效率 98%
  Cooling System /冷却系统 YES /
  Environmental /环境 Operating Temperature /运行温度 0 - 40 ℃
Relative Humidity /相关湿度 10%~102% RH, non-condensing /不凝露
Storage Temperature /储存温度 ﹣15 - 45 ℃
  Appearance /外观 Size (Max. mm) MSER 机箱尺寸 952*700*1080 952*700*1080
N.W. (kg)  MSER 净重 358.3 410.6
  Packing  /包装 Qty/Ctn / 1
Carton Size (mm) MSER 包装尺寸 1060*800*1260 1060*800*1260
Carton G.W. (kg)  MSER 毛重 403.3 455.6
